Band Knives EC 900 N
Band Knives EC 900 N

Band Knives EC 700 N

Features
1.Variable speed provided by unique inverter control adapts cutting to every type of material. Speed can easily be changed by touch panel.
2.Digital read-out of knife speed, easily adjustable to suit various cutting requirements.
3.Touch panel with digital display is built into work-table for maximum ease of operation.
4.Very low vibration and noise levels achieved by compact, light design of machine and hi-tech engineering.
5.New tension control mechanism assures proper knife tension.
6.Ball nozzle type airflow work table is standard equipment.
7.Casters make machines easily movable.
8.Inverter circuit has self-detector which shows display error message when overloaded.

Categories: ,

Description

PARAMETER

  •  Variable speed with inverter motor
  •  Ball nozzle airflow work table
  •  Automatic Sharpening device
  •  Knife cooling silicom pad
  •  Knife speed digital display
EC-700N EC-900N
CUTTING CAPACITY 180mm 180mm
TABLE SIZE 1500*1800mm 1500*2100mm
TABLE HEIGHT 720-790mm 720-790mm
ARM SIZE 700mm 900mm
SPEED CONTROL 570m/min-1140m/min 570m/min-1140m/min
MACHINE WEIGHT 280kgs 300kgs
KNIFTE SIZE 0.45*10*3500mm 0.45*10*3960mm
MOTOR 220V175W 220V750W
BLOWER MOTOR 220V180W 220V180W
DIMENSIONSmm 1640(L)X940(W)X1980(H) 2210(L)X940(W)X1980(H)
Reviews (0)
Shipping & Delivery

Related products

Band Knives EC 900 N

Features 1.Variable speed provided by unique inverter control adapts cutting to every type of material. Speed can easily be changed by touch panel. 2.Digital read-out of knife speed, easily adjustable to suit various cutting requirements. 3.Touch panel with digital display is built into work-table for maximum ease of operation. 4.Very low vibration and noise levels achieved by compact, light design of machine and hi-tech engineering. 5.New tension control mechanism assures proper knife tension. 6.Ball nozzle type airflow work table is standard equipment. 7.Casters make machines easily mova ble. 8.Inverter circuit has self-detector which shows display error message when overloaded.

Blue Streak II

MODEL 629X – With versatility unmatched by any other straight knife, the Blue Streak II® is the obvious choice when one cloth cutting machine is required to perform many tasks.

Brute Variable Speed®

MODEL 627VS – A standard Brute Straight Knife enhanced with a variable speed motor to offer increased acceleration, and smoother operation, all while saving energy. It is the only cutting machine on the market that runs at speeds up to 4,000 RPM’s.

Brute®

MODEL 627X – With a super-efficient and extra powerful motor, the 627X Brute straight knife is designed to cut the toughest fabrics or an increased number of ply.

Cloth Drill®

MODEL CD3 – The Eastman Cloth Drill marker can drill holes through numerous layers of fabric, indicating buttonholes, darts, pockets, and other attachment points.

Hot Cloth Drill®

MODEL CD3H – The Hot Cloth drill leaves identifiable marks on loosely woven, or knit fabrics, where an ordinary drill mark would not be detected.

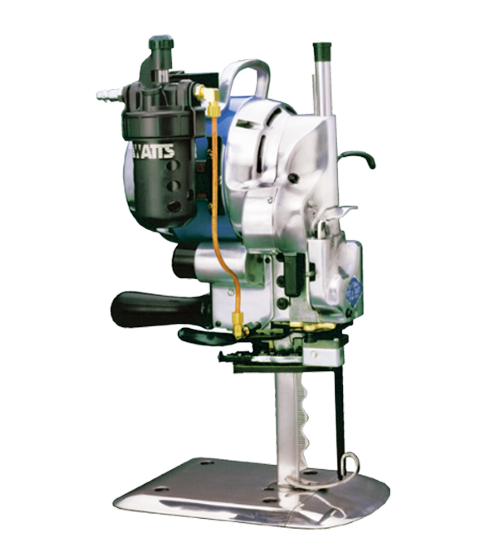

Micro Fog®
